Marine Salt Water Resistant Sealant


Sani-Tred has been used extensively in Salt Water applications swimming pools, custom aquariums, breeding tanks, fiberglass tanks, boats, yachts, tankers, sea walls and more.

A test was devised consisting of fir 2" x 4" lumber, concrete, structural steel plate, 030coatings of LRB and PermaFlex from 20-30 mils as well as solid castings of LRB, were attached to a pier column near Los Angeles, California. The test sample was prepared with both coated and uncoated areas to create and allow a "raw edge" of the coatings and LRB castings to examine the products abilities to resist delamination or detachment caused by constant immersion to sea water where the coatings were terminated upon the test sample substrates of wood, concrete, and steel plate.

This test installation has been subjected to continuous immersion. The test sample was intended to test the suitability for these products as waterproofing system with-in harsh salt water applications and to determine their over-all abilities to withstand constant immersion without physical breakdown or deterioration. The results of routine examinations after 3 years are as follows.

Four pieces of badly rusted, flaking, scrap, structural steel checker plate and channel were coated with 15 mil films of SANI-TRED PermaFlex marine water sealer paint at 40° F., and 70° F .

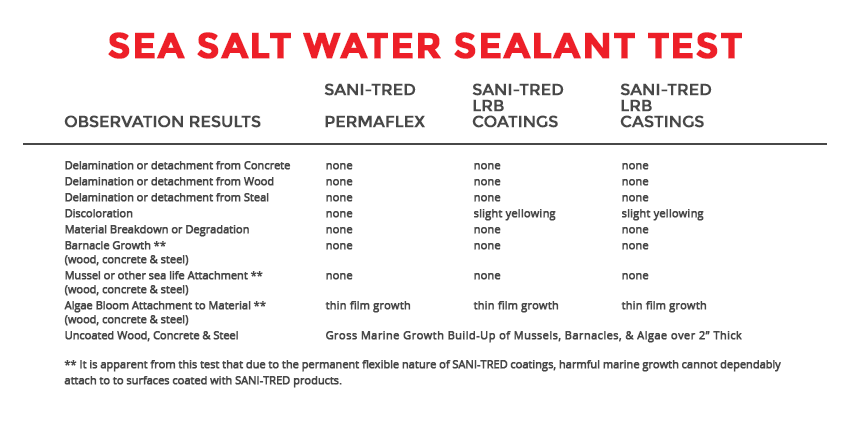

sea salt water sealant testSani-Tred Underwater Coating Test

(This test was designed to exceed ASTM salt spray testing procedures.)

Four pieces of badly rusted, flaking, scrap, structural steel checker plate and channel were coated with 15 mil films of SANI-TRED PermaFlex marine water-resistant sealant paint at 40° F., and 70° F. Only half of the individual pieces were coated with this waterproof sealant paint, and the other half of the pieces were left uncoated and in their original rusty condition. These rusty test pieces had no oils or grease of any kind on them therefore no preparation was given to the rusty test pieces in advance and PermaFlex was applied directly upon gross flaking rust deposits and scales.

New pieces of identical steel were degreased with solvent and free from rust and oxidation. The new pieces of degreased steel were also coated with the salt water resistant coating, the SANI-TRED PermaFlex, at 40° F and 70° F in exactly the same way as the rusty pieces. All pieces were allowed to cure overnight @ 25° F. Next morning, a solution of 4 pounds of rock salt was added to one gallon of water to produce a completely saturated salt brine solution.

The coated test pieces of steel were placed in shallow plastic pails, with the brine solution, to allow a vertical line of coated and uncoated steel to be both below and above the water line of the brine solution. The containers were placed out doors in the Midwestern US and protected from rain or snow dilution of the brine solution by placing the small plastic pails with-in steel drums with loose fitting covers. These containers were subjected to the fluctuations in ambient temperatures above 100°F., to below -40° F. Water was occasionally added to the brine solution during the test to replace moisture loss due to evaporation.

After 12 months the partially coated steel parts were removed from the brine, rinsed with fresh water and examined.sea salt water coating testsanitred-order-now1 copy

Shopping Cart

Questions? Call Our Experts
